Features:

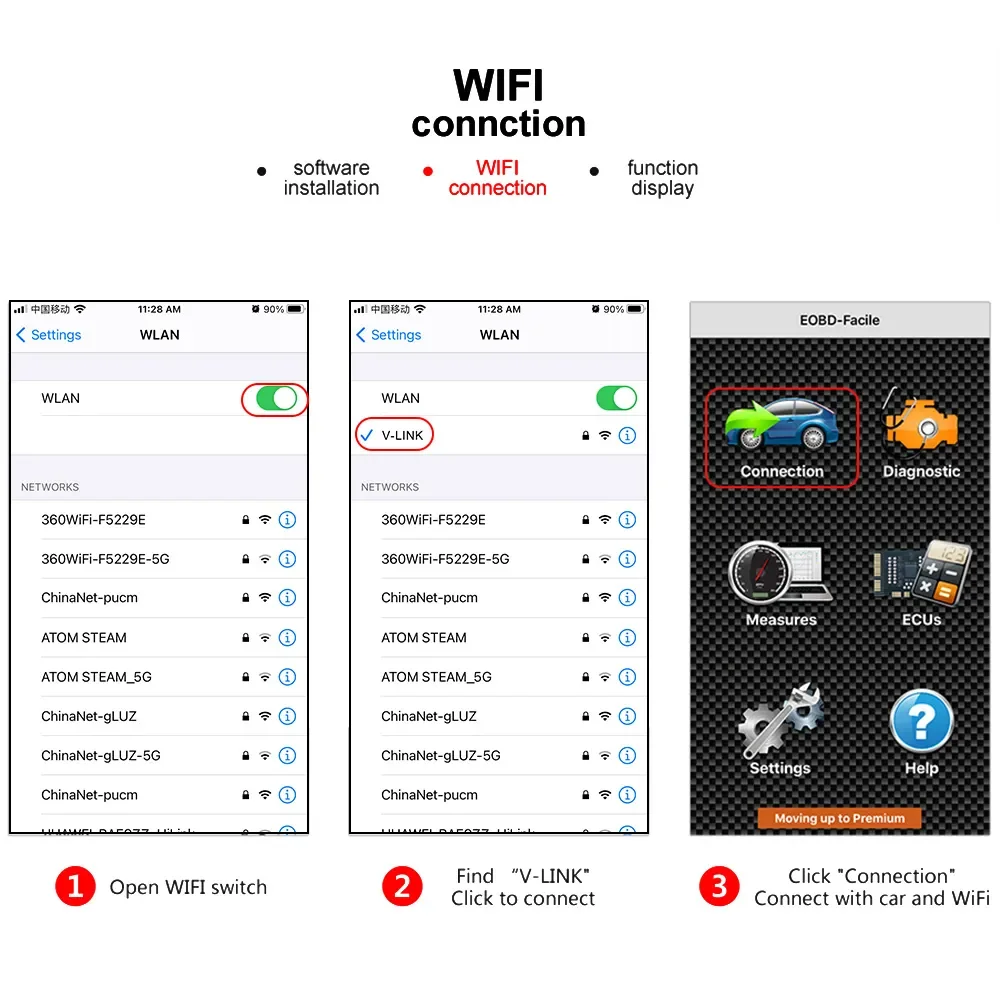

• Wifi ELM327 interface is able to detect and interpret obd2 / eobd protocols automatically. It also provides support for high speed communications and a low power sleep mode. It use AT commands to communicate with a host device (PC, notebook, for iOS). There are plenty of software packages available, which are fully compatible with this tool. Some of them have pretty useful features, such as engine running parameters monitoring, DTC reading and clearing, MPG meter, etc. You can even write your own software on a specified hardware platform if you wish, because the AT commands are fully documented and very well explained. This tool is only 2.7 x 1.25x 0.9 inches, and it comes with a 6 ft OBDII cable for easy installation. It also includes a power switch built-in to prevent the need for having to constantly disconnect your unit from the OBDII port. It is compatible with 1996 and later vehicles which are obd2 or eobd compliant. Connecting to your iPhone / iPod touch is made by WIFI connection in adHoc mode.

• Firmware Version V1.5 (Supports more protocols SAE J1850 than V2.1).

• With chip: PIC18F25K80  ,supports all elm327 fucntions,in program ELM327 identifier,it shows full functions.

• It understand commands such as  ATPPS and other.

• The frequency of the crystal oscillator is 4mHz.

Supported protocols:

1. SAE J1850 PWM (41.6Kbaud)

2. SAE J1850 VPW (10.4Kbaud)

3. ISO9141-2 (5 baud init, 10.4 Kbaud)

4. ISO14230-4 KWP (5 baud init, 10.4 Kbaud)

5. ISO14230-4 KWP (fast init, 10.4 Kbaud)

6. ISO15765-4 CAN (11bit ID, 500 Kbaud)

7. ISO15765-4 CAN (29bit ID, 500 Kbaud)

8. ISO15765-4 CAN (11bit ID, 250 Kbaud)

9. ISO15765-4 CAN (29bit ID, 250 Kbaud)

Mini OBD2 Wifi Scanner Functions:

1. Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).

2. Clear trouble codes and turn off the MIL ("Check Engine" light)

3. Display current sensor data, including:

4. Engine RPM

5. Calculated Load Value

6. Coolant Temperature

7. Fuel System Status

8. Vehicle Speed

9. Short Term Fuel Trim

10. Long Term Fuel Trim

11. Intake Manifold Pressure

12. Timing Advance

13. Intake Air Temperature

14. Air Flow Rate

15. Absolute Throttle Position

16. Oxygen sensor voltages / associated short term fuel trims

17. Fuel System status

18. Fuel Pressure

19. Many others

Compatible systems:

• Software support platform: Windows XP, Windows 7/8, IOS, Android, Symbian.

• Compatible software:
  Window: ScanMaster-ELM, ScanTool.net, PCMSCAN ELM, etc.
  IOS: Auto Doctor, Mini OBDII
  Android: Torque, DashCommand, OBD Car Doctor, Auto Doctor, Mini OBD, EOBD, etc.

• Symbian: OBDScope

Package List:

• 1pc x Mini OBD2 Wifi Scanner

• 1pc x Box
