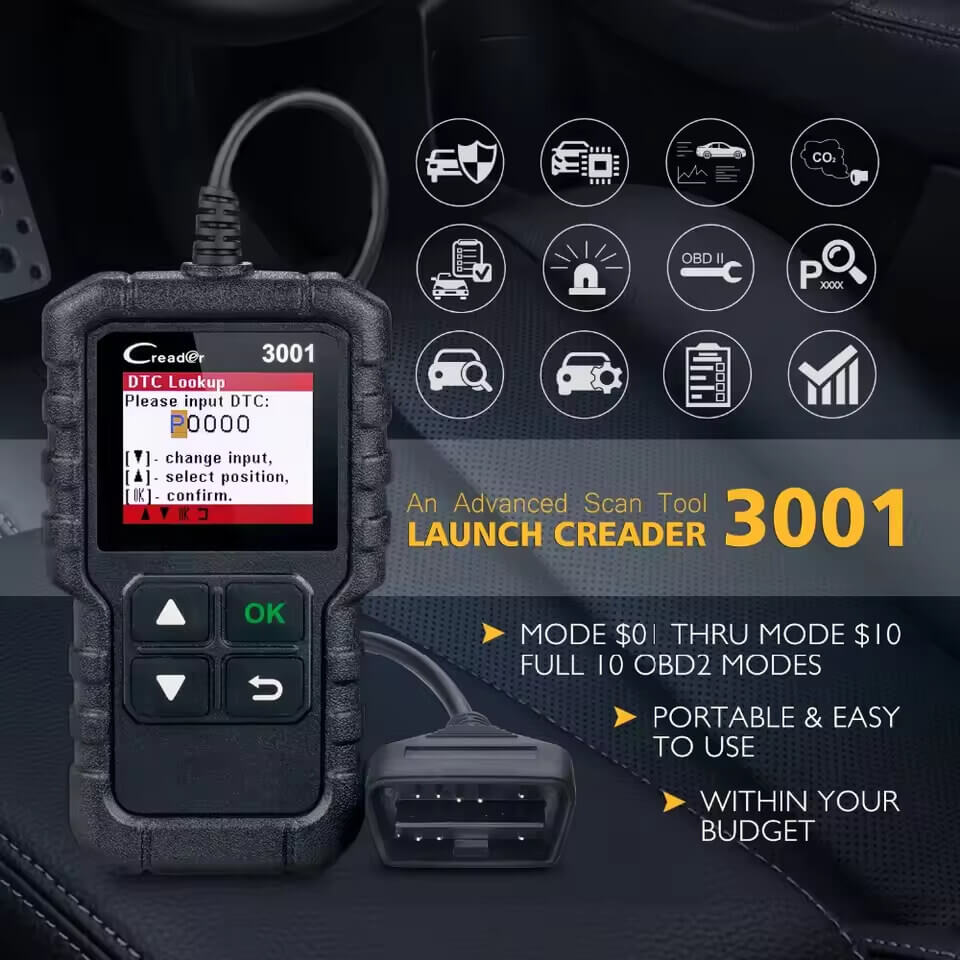

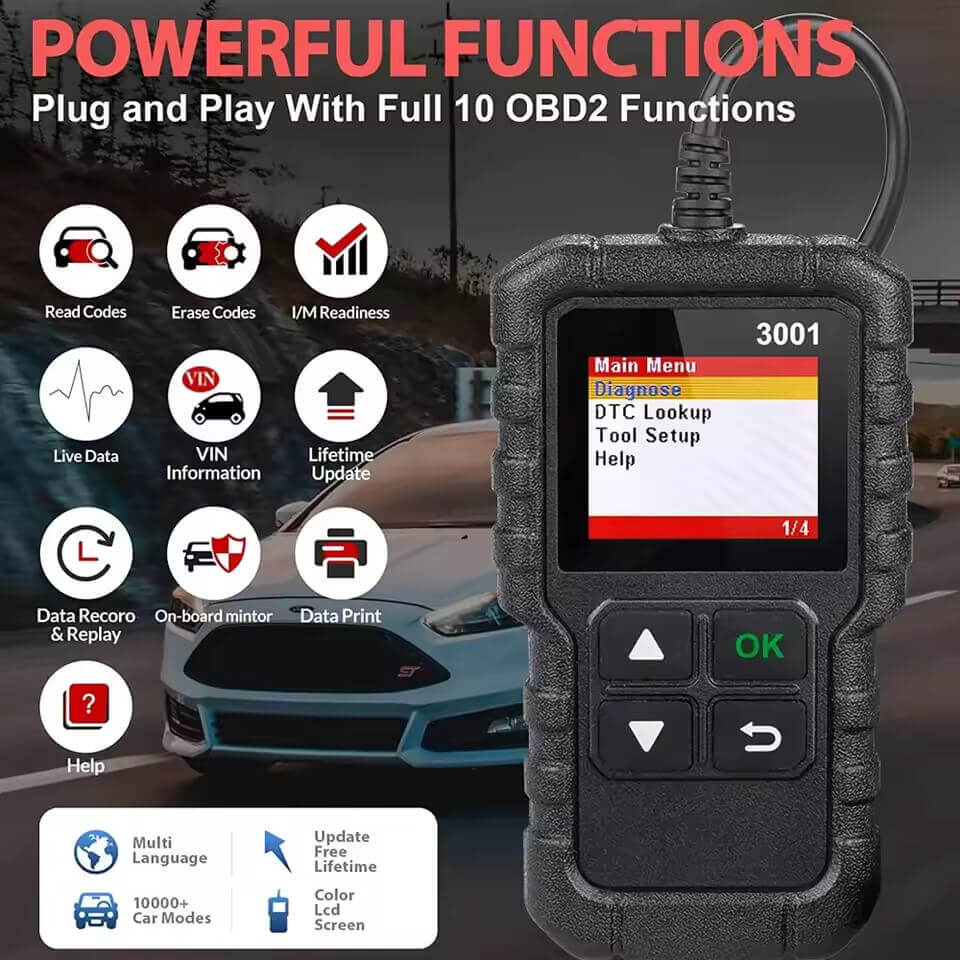

Features:

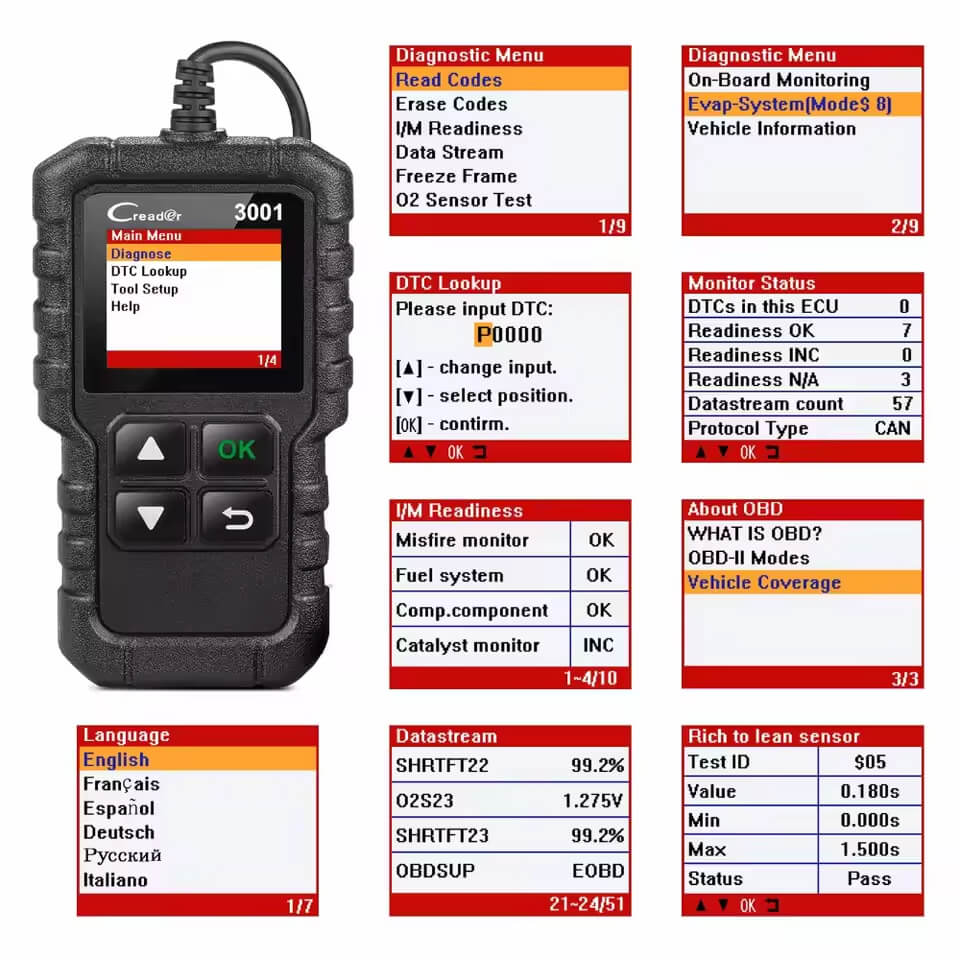

• Reading Codes: Show the detailed description of the Diagnostic Trouble Code (DTCs).

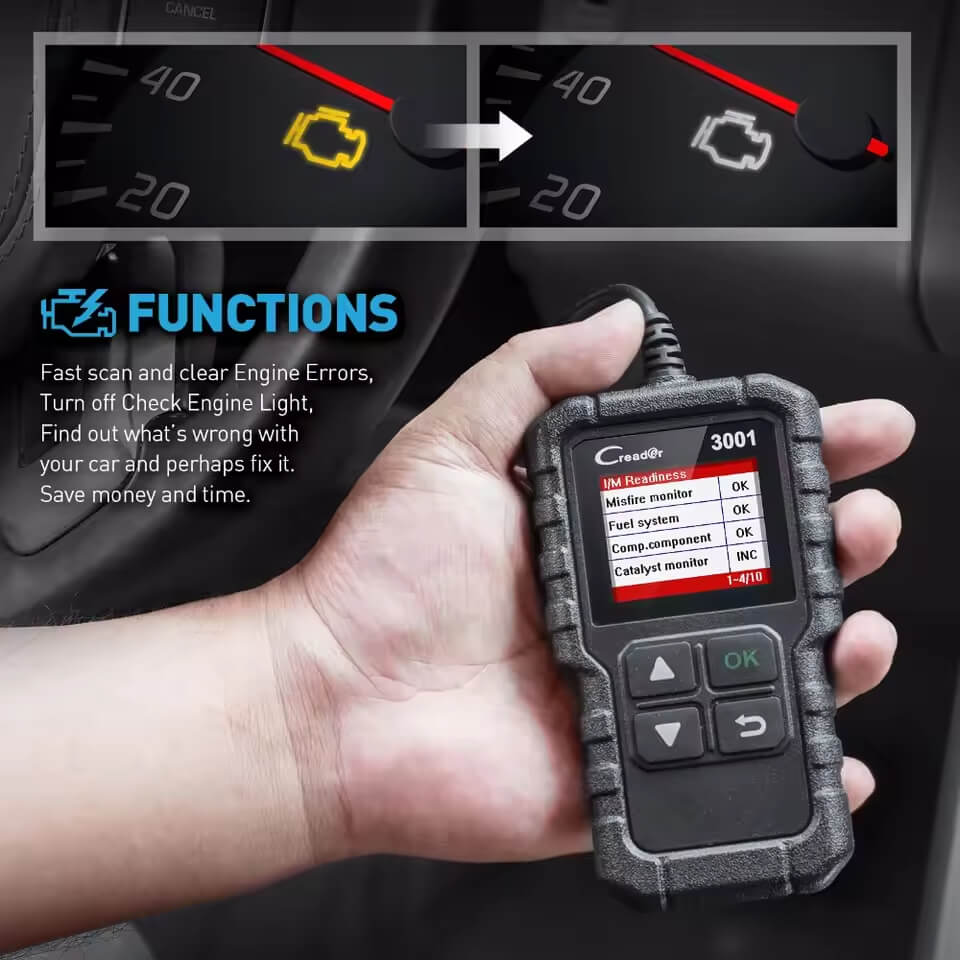

  Erasing Codes Reset: Turns off Check Engine Light (MIL), clears codes and resets monitors.
• Data Stream: Reads and displays live ECU/PCM data stream, plotting functions graphically and stores freeze frame data.
• I/M Readiness Status: Shows whether the various emissions-related systems on the vehicle are operating properly and are ready for inspection and maintenance testing.
• Read Live Data Stream: Show the information of continuous data stream from a vehicle in live graphic (waveform) display.
• View Freeze Frame Data: Check the certain vehicle conditions which are recorded by the on-board computer at the time the emission-related fault occurs.
• O2 Sensor Test: Allows retrieval and viewing of O2 sensor monitor test results for the most recently performed tests from the vehicle’s on-board computer.
• On-Board Monitor Test: Retrieves and displays test results for emission-related powertrain components and systems.
• Read Vehicle Information: Display the information such as VIN (Vehicle Identification Number), CID (Calibration ID) and CVN (Calibration verification number), etc.
• Component Test: Certain vehicle components can be actuated by commands sent from the scanner to test their operability.
• Free Update Online: It can be connected to PC through the USB cable for upgrade to keep updated with the latest software version.

CR3001 Support OBD2 protocols car :

1. SAE J1850 PWM(41.6Kbaud)

2. SAE J1850 VPW(10.4Kbaud)

3. ISO9141-2(5 Baud init,10.4kbaud)

4. ISO14230-4 KWP(5 baud init,10.4 Kbaud)

5. ISO14230-4 KWP(fast init,10.4 Kbaud)

6. ISO15765-4 CAN(11bit ID,500 Kbaud)

7. ISO15765-4 CAN(29bit ID,500 Kbaud)

8. ISO15765-4 CAN(11bit ID,250 Kbaud)

9. ISO15765-4 CAN(29bit ID,250 Kbaud
   (Note: CR3001 only Support 12V Gasoline Diesel, Does not support 24V Truck )

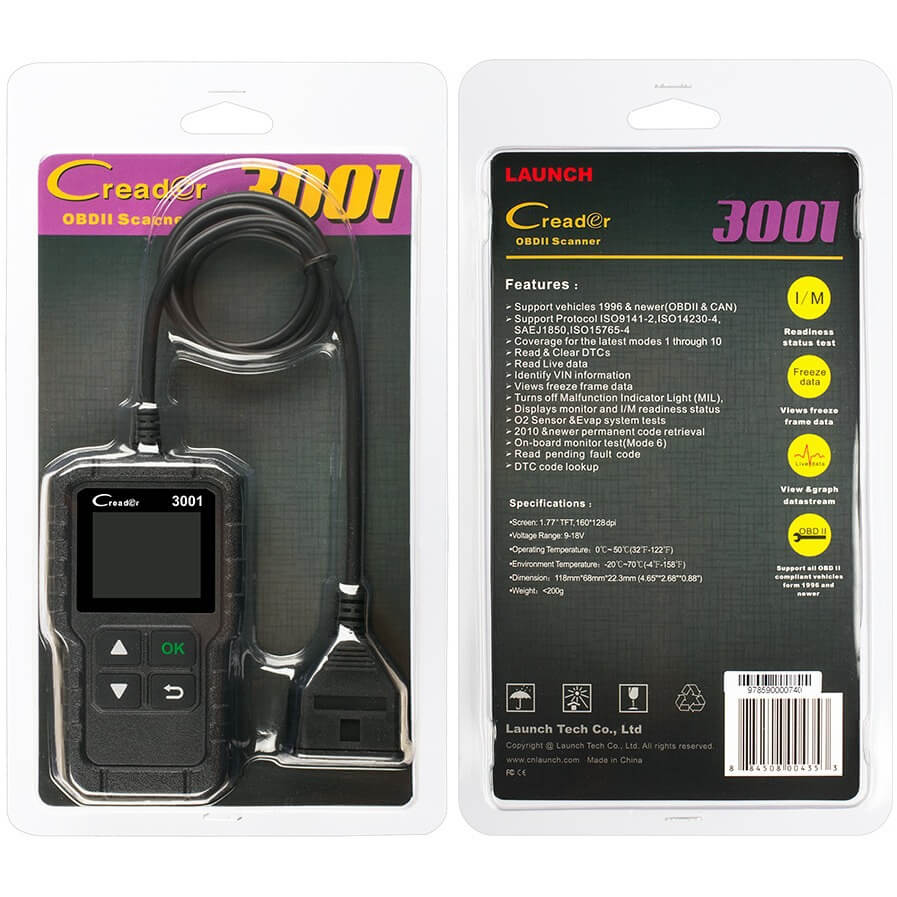

Specifications:

• Screen :1.77 " TFT, 160*128dpi

• Voltage Range: 9-18V

• Operating Temperature :0℃ -50 ℃ (32 ℉ -122 ℉ )

• Environment Temperature -20 ℃ -70 ℃ (-4 ℉ -158 ℉ )

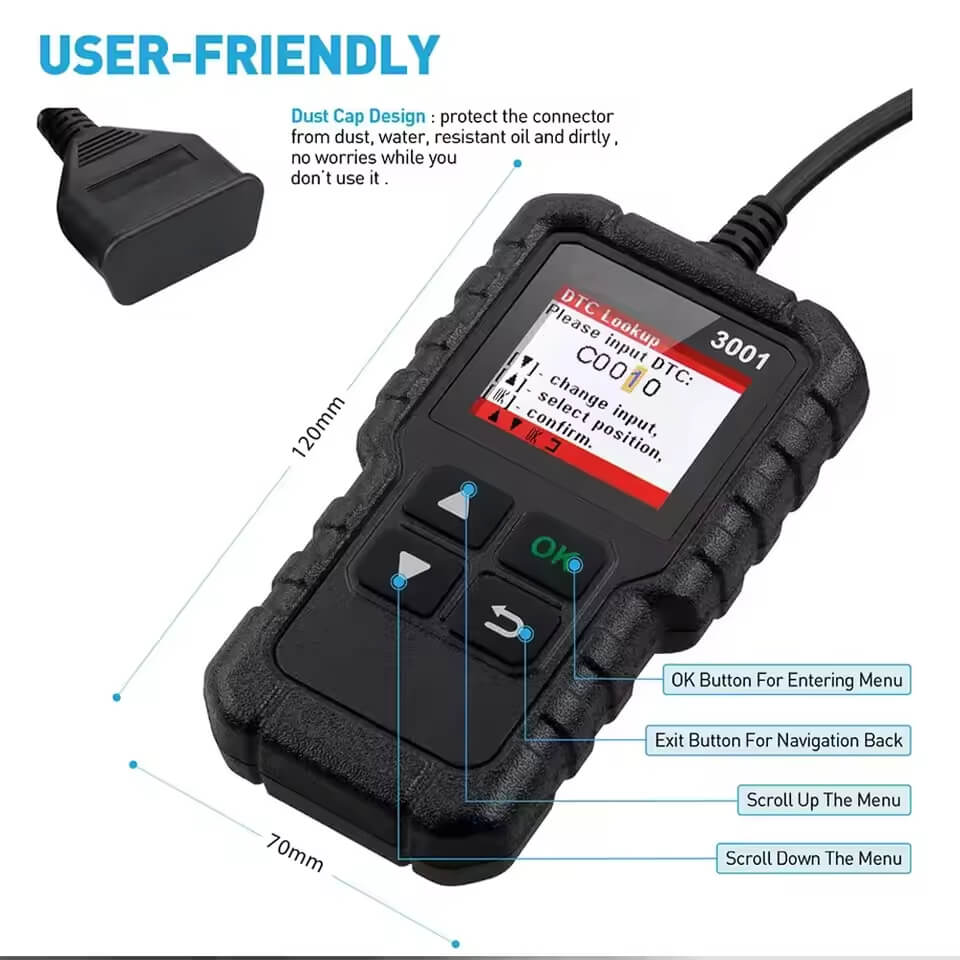

• Dimension : 118mm*68mm*22.3mm(4.65" *2.68 " *0.88 " )

Note:

• Even though it compatible with most cars, but different regions support the vehicle OBD2 protocol at different times, or some car is special design, so it may not compatible with some cars which do not support OBD2 protocol. Especially Japanese and Korean car brand.

• Not Support Russian Cars before 2012, VAZ,UAZ,LADA ; Not works with 24V trucks, for Renault, SsangYong, please contact us before purchasing.
