Features:

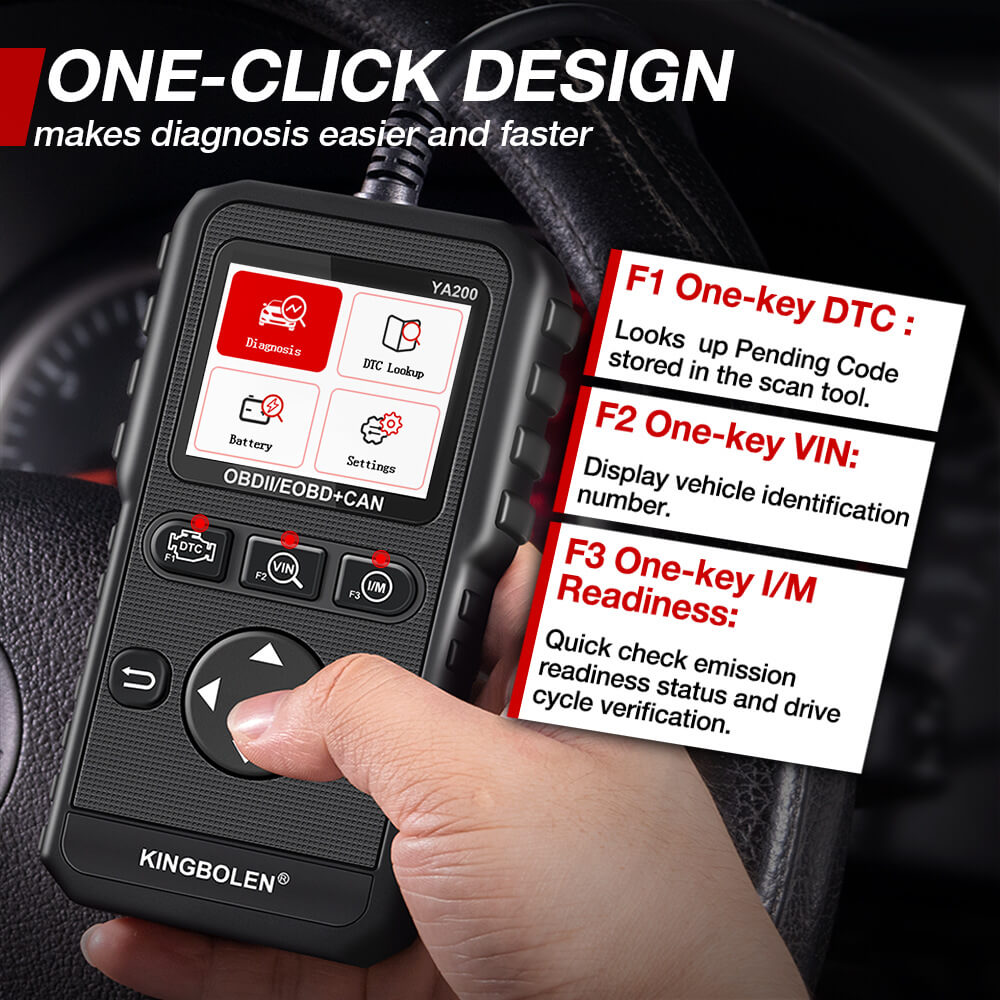

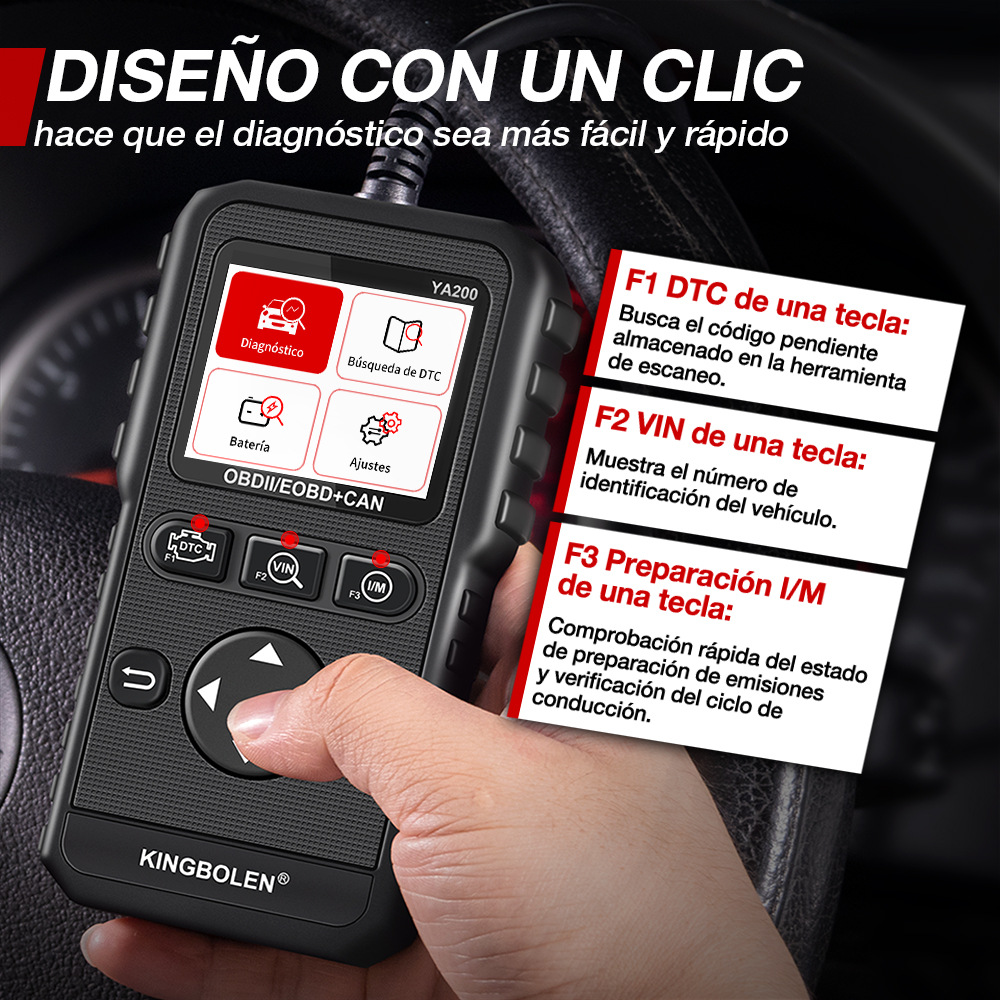

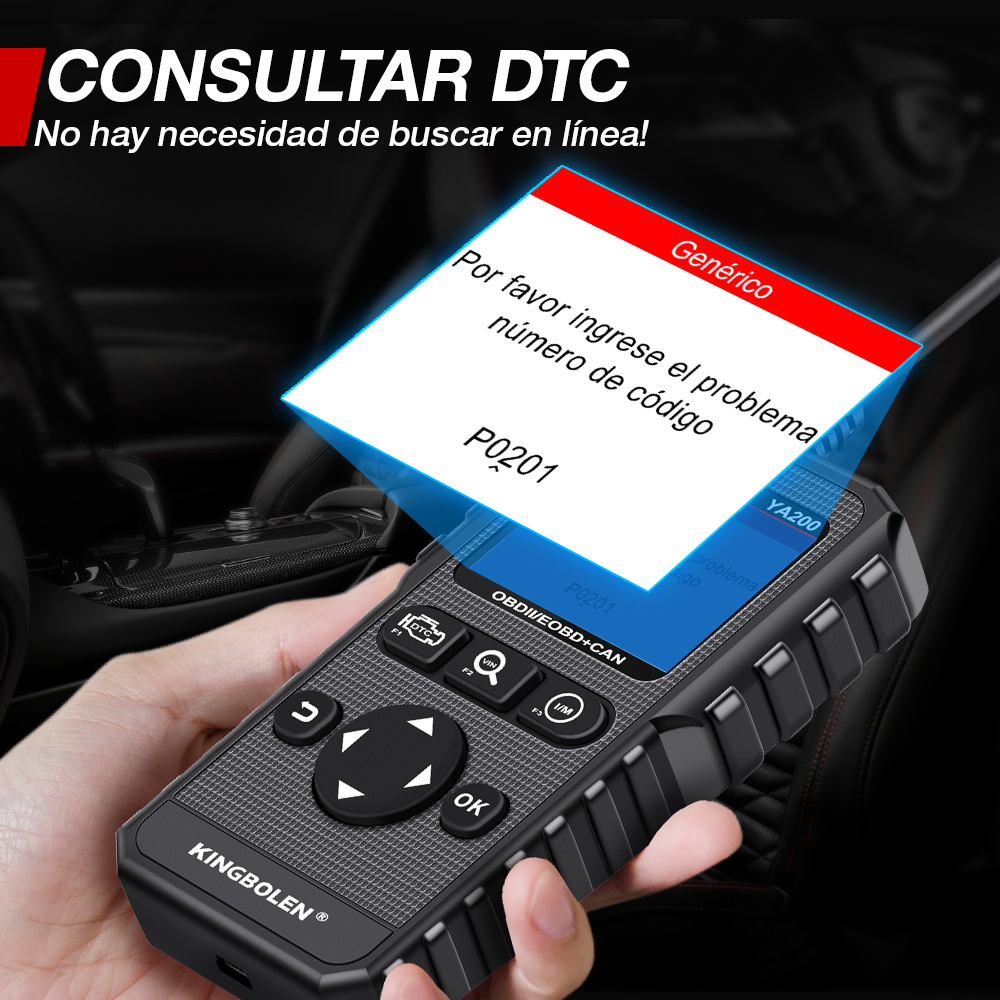

• Reading Codes: Show the detailed description of the Diagnostic Trouble Code (DTCs).

• Erasing Codes & Reset: Turns off Check Engine Light (MIL), clears codes and resets monitors.

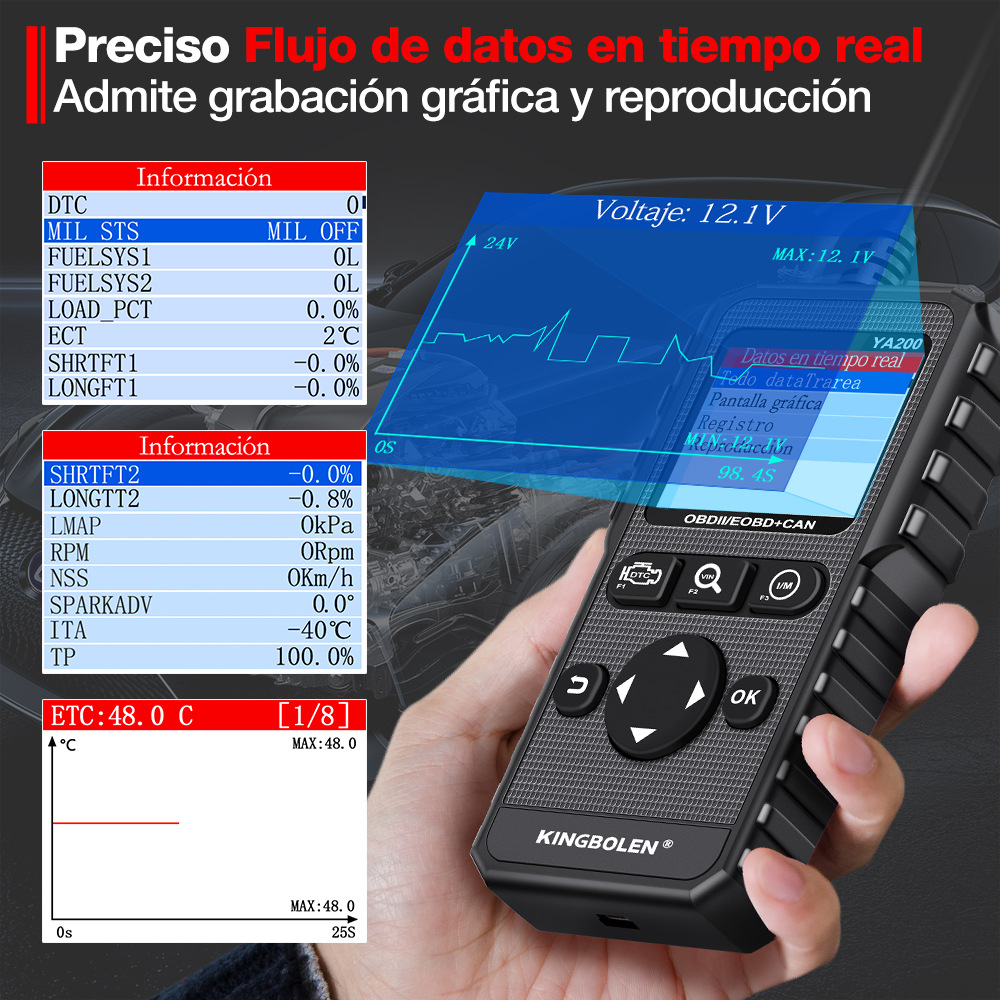

• Data Stream: Reads and displays live ECU/PCM data stream, plotting functions graphically and stores freeze frame data.

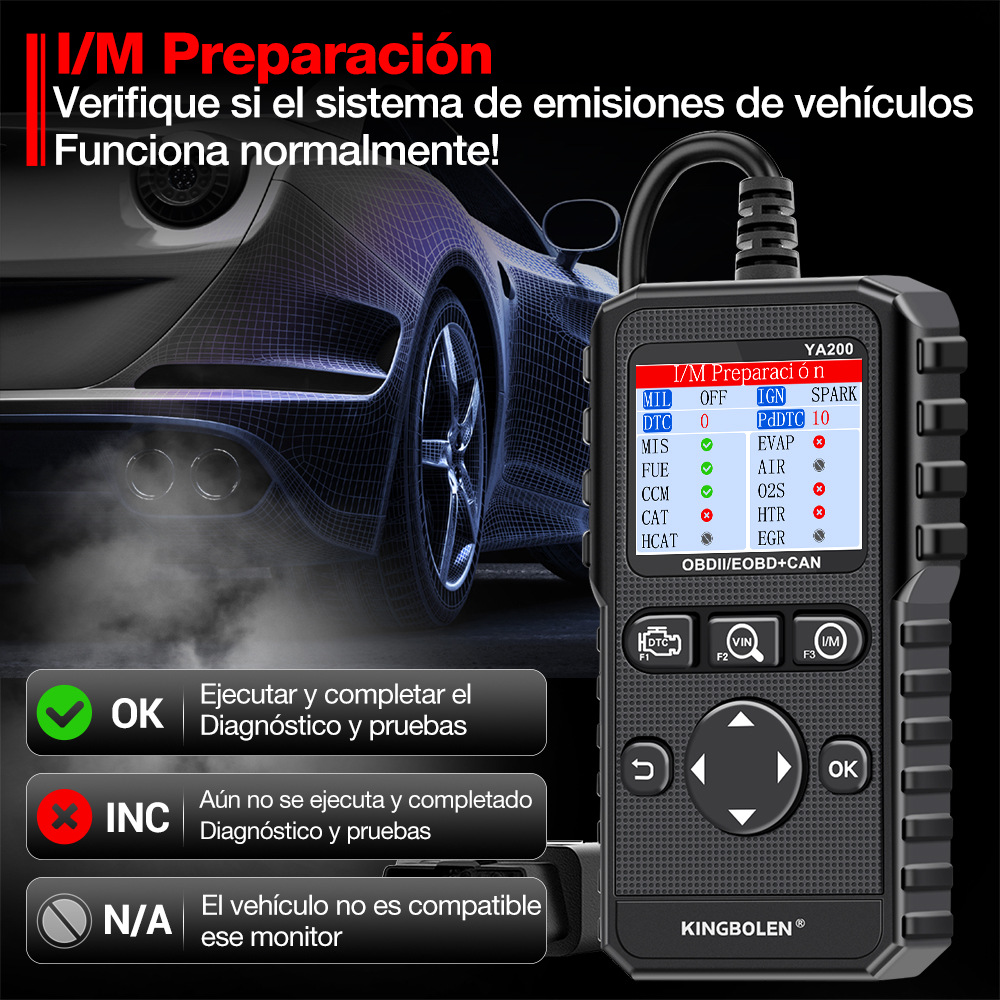

• I/M Readiness Status: Shows whether the various emissions-related systems on the vehicle are operating properly and are ready for inspection and maintenance testing.

• Read Live Data Stream: Show the information of continuous data stream from a vehicle in live graphic (waveform) display.

• View Freeze Frame Data: Check the certain vehicle conditions which are recorded by the on-board computer at the time the emission-related fault occurs.

• O2 Sensor Test: Allows retrieval and viewing of O2 sensor monitor test results for the most recently performed tests from the vehicle’s on-board computer.

• On-Board Monitor Test: Retrieves and displays test results for emission-related powertrain components and systems.

• Read Vehicle Information: Display the information such as VIN (Vehicle Identification Number), CID (Calibration ID) and CVN (Calibration verification number), etc.

• Component Test: Certain vehicle components can be actuated by commands sent from the scanner to test their operability.

YA200 Code Reader meets the following protocols:

1. SAE J1850 PWM (41.6 Kbaud)

2. SAE J1850 VPW (10.4 Kbaud)

3. ISO 9141-2 (5 baud init, 10.4 Kbaud)

4. ISO14230-4 KWP (5 baud init, 10.4 Kbaud)

5. ISO14230-4 KWP (fast init, 10.4 Kbaud)

6. ISO15765-4 CAN (11bit ID, 500 Kbaud)

7. ISO15765-4 CAN (29bit ID, 500 Kbaud)

8. ISO15765-4 CAN (11bit ID, 250 Kbaud)

9. ISO15765-4 CAN (29bit ID, 250 Kbaud)
